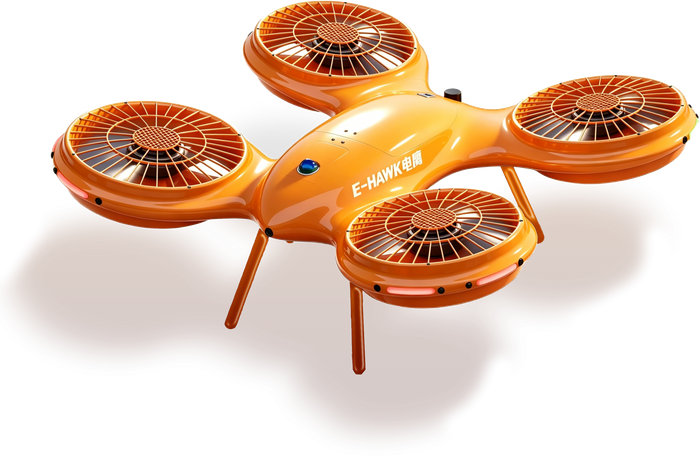

EHD1000 Industrial Ducted Aerial Robot
)
)
)
EHD1000 is built on E-HAWK's self-developed industrial ducted flight platform, with a maximum take-off weight of 24.9kg and a maximum payload of 8kg. It adopts a fully enclosed four-ducted configuration with high-efficiency ducted propellers, ensuring low power loss and high propulsion efficiency. The professional aerodynamic noise reduction design enables low-noise operation, suitable for close-proximity operations in urban residential areas and commercial buildings. The ducted structure and landing gear are foldable, with a compact storage size for easy transportation and rapid on-site deployment. It is equipped with an intelligent battery system, supporting real-time power monitoring, intelligent temperature control, and fast charging. The whole machine has 6-level wind resistance stability, all-round millimeter-wave obstacle avoidance, visual obstacle avoidance, and multi-mount expansion capability, which can adapt to various operation loads and support function customization. It is a special safe ducted flight robot for urban building close-proximity operations.
