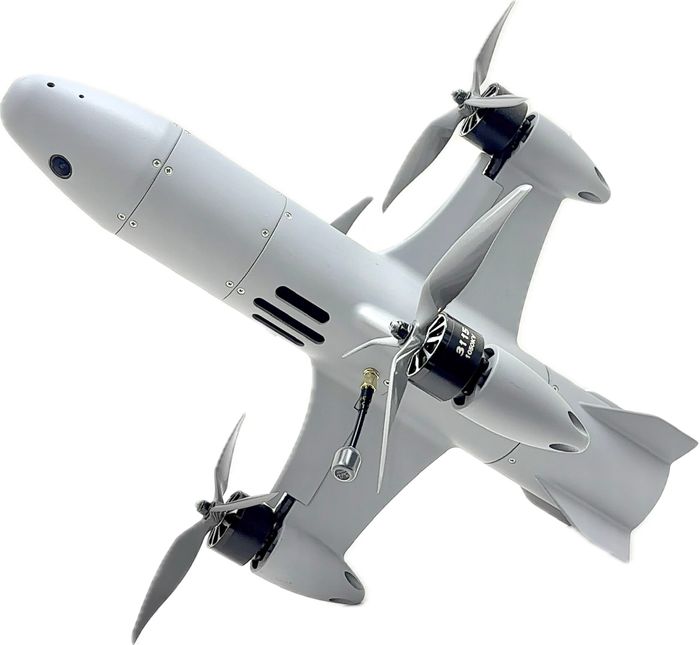

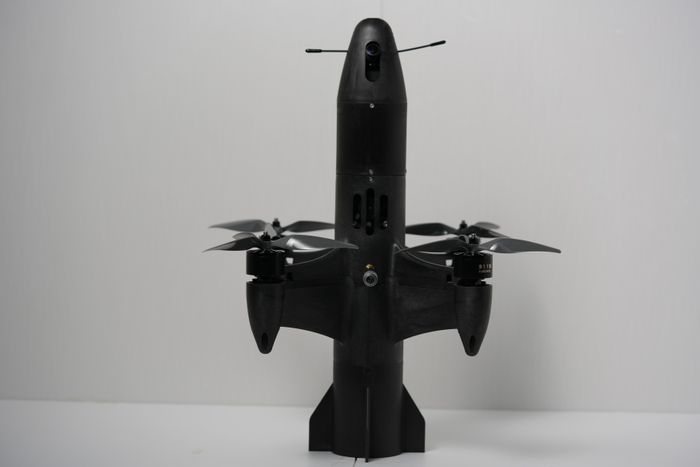

H-07 Terminal Interception Drone
)
)
)
)
1. Platform Performance
Maximum flight speed: Up to 300 km/h
Cruising speed: 100–180 km/h
Operational radius: 15 km
Operating altitude: 50–2,000 m
Endurance: 10 min
Launch method: Vertical takeoff / Launcher launch
2. Propulsion System
Motor type: High-efficiency brushless motor
Propeller: Composite high-speed blades
Battery system: 120C 8S 35Ah
3. Detection and Target Recognition
Resolution: 36×36
Target recognition algorithm: YOLO tracking algorithm
Target recognition range: 300 m (for delta-wing UAVs)
4. Guidance and Control
Guidance method: AI visual guidance
Terminal attack mode: Direct impact + Proximity detonation
5. Communication/RF
RF frequency: 915 MHz
Frequency band: 5.8 GHz
6. Structure and Airframe
Size: 7 inches
Airframe material: Carbon fiber composite
Takeoff weight: 2.2 kg
Mission payload: 300 g
Max wind resistance: Level 6
7. Thermal Management System
ESC cooling system
Video transmission module cooling system
