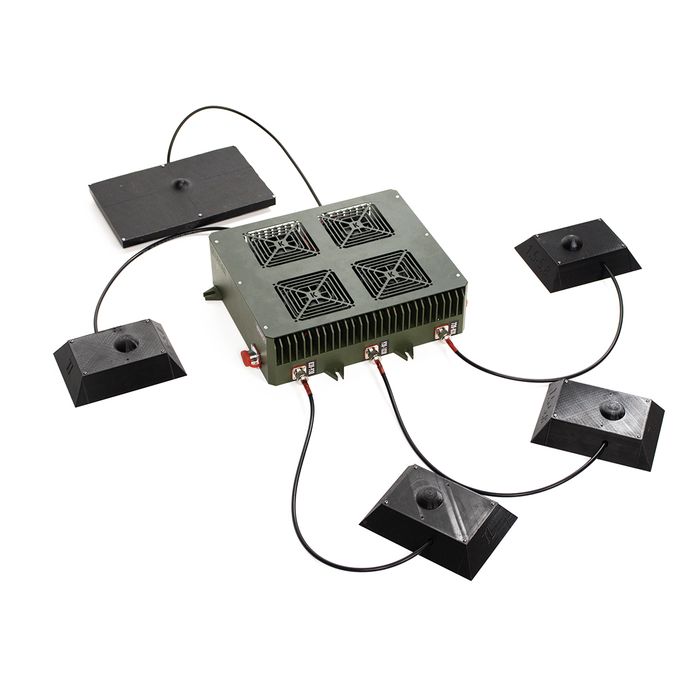

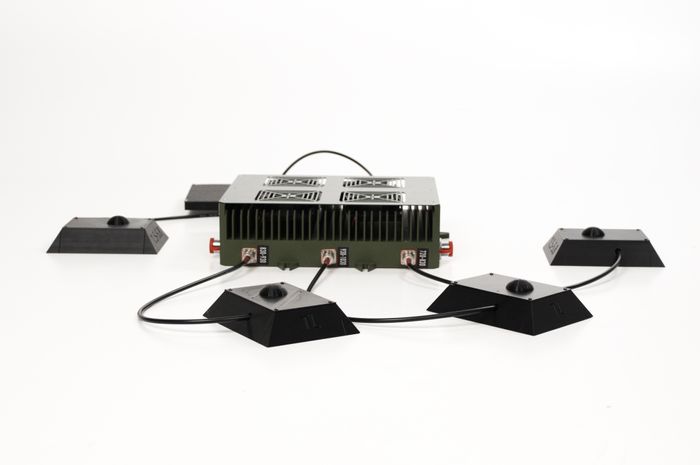

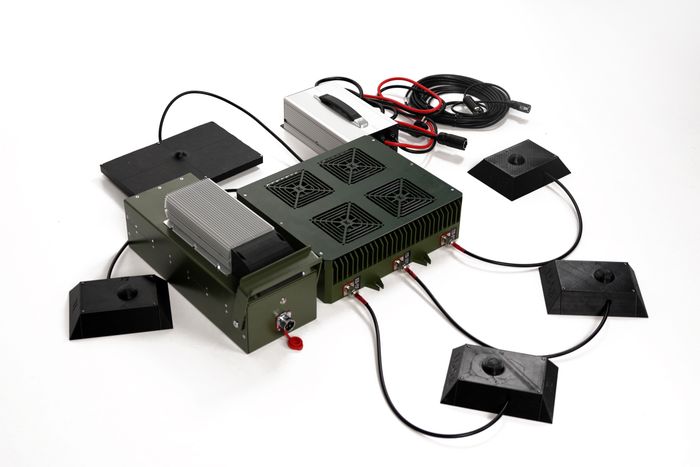

KVAZAR A
)
)
)
Short-range electronic warfare system for installation on vehicles and armored vehicles. Designed to protect units in areas of concentration and during assault operations. The system increases the protection of personnel, weapons, and equipment from damage by: multi-rotor UAV ammunition (with drop-offs) and kamikaze drones.
TECHNICAL SPECIFICATIONS
FREQUENCY RANGE: 400-600 MHz, 730-1030 MHz, 2100-2700 MHz, 5150-5350 MHz, 5725-5850 MHz
MODULE POWER OUTPUT: 100W
POWER SUPPLY: battery
CONTROL: on the case/from the remote control
HOUSING PROTECTION: IP66
FUSES: overheating/disconnected antenna
ANTENNAS: innovative flat omnidirectional
JAMMING RADIUS: up to 300 m
AUTONOMY:1.5-2 h (battery-powered)
COMPLEX WEIGHT: 15 kg
COOLLING: active coolers (IP68 protection)
HOUSING MATERIAL: aluminium
