MVC Battery Essential
)
MVC Battery Essential

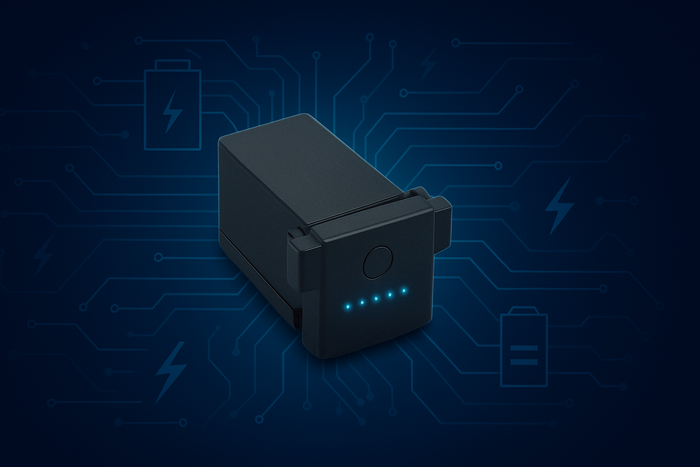

MVC Battery Essential is a high-performance smart battery designed for micro drones and embedded UAV systems. Equipped with intelligent BMS technology, robust safety features, and real-time telemetry integration, it ensures reliable power delivery, extended flight duration, and seamless communication with autopilot systems. Ideal for demanding field conditions and compact drone platforms.
🔌 Battery Connector
The high-quality Samtec UMPS-06-05.5 connector ensures reliable and secure connections during high-vibration drone operations
|
Component |
Specification |
|
Connector |
Samtec UMPS-06-05.5-L-V-S-W-TR |
⚡ Electrical Data
Optimised for 2S LiPo systems, MVC Battery Essential provides a stable 7.7V output with up to 2250mAh capacity, making it ideal for endurance-focused UAV applications.
|
Parameter |
Specification |
|
Rated Capacity |
2250 mAh |
|
Battery Type |
LiPo 2S |
|
Rated Voltage |
7.7 V |
|
Charging Voltage Limit |
8.5 V |
|
Charging Temp. Range |
5°C to 40°C (41°F to 104°F) |
🧠 Processor
Powered by a 32-bit ARM Cortex-M23 MCU running at 72MHz, the onboard processor from GigaDevice manages battery functions with efficiency and accuracy.
|
Component |
Specification |
|
Manufacturer |
GigaDevice GD32E230F8V6TR |
|
Processor Type |
ARM Cortex-M23 32-bit MCU |
|
Clock Speed |
72 MHz |
🌡️ Thermistors
With both PTC and NTC thermistors, the system monitors battery temperature in real time, enhancing safety and thermal regulation across all cells.
|
Monitoring |
Implementation |
|
PTC Thermistor |
1 on the board |
|
NTC Thermistors |
1 per cell |
🔋 BMS Component
A smart battery management system using TI's BQ40Z50 enables advanced diagnostics, monitoring, and charge/discharge control with 5 LEDs and one user button.
|
Component |
Specification |
|
BMS Chip |
Texas Instruments BQ40Z50 |
|
Indicators |
5 LEDs |
|
User Interface |
1 multifunction button |
✅ Features & Indicators
Safety and convenience are built-in. From overcurrent protection to detailed LED battery level indicators, MVC Battery Essential ensures worry-free operation.
|
Feature |
Description |
|
Balanced Charging |
2S battery pack support |
|
Protections |
Overcharge, Overcurrent, Temp., Short Circuit |
|
Telemetry |
Battery data to autopilot |
|
Button |
Short & long press functions for ON/OFF & display |
|
LED Indicators |
5 LEDs, 10% resolution, blinking for fine status |
📦 Mechanical Data
Compact yet robust, the 82g unit is perfectly sized for small aerial platforms and offers easy installation with optimised weight distribution.
|
Parameter |
Value |
|
Weight |
82 g |
|
Dimensions |
42mm (W) × 76mm (L) |
)
