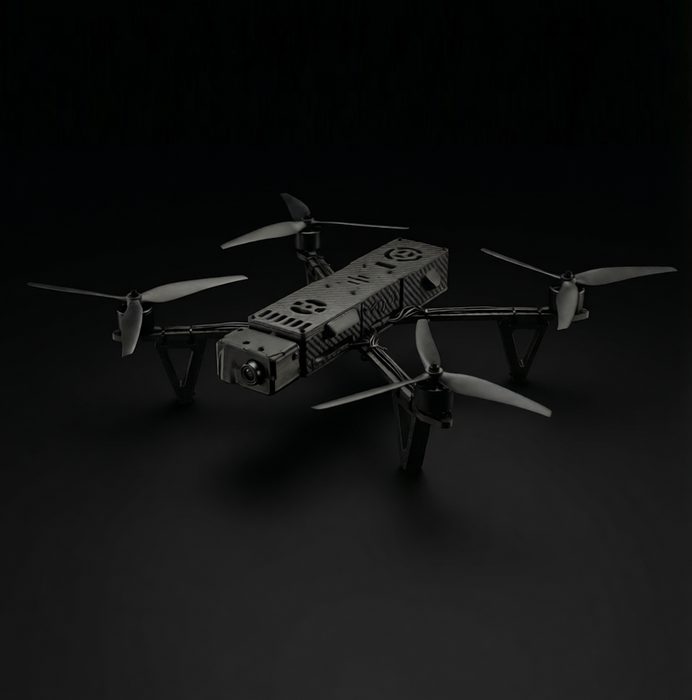

Tarzan-10

Tarzan-10 | Combat-Proven Heavy-Lift UAV

Tarzan-10 is a versatile 10-inch heavy-lift UAV designed using real-world combat experience and already used in Ukraine. Its modular design and high payload capacity make it suitable for a wide range of missions, including reconnaissance, surveillance, logistics and precision operations.

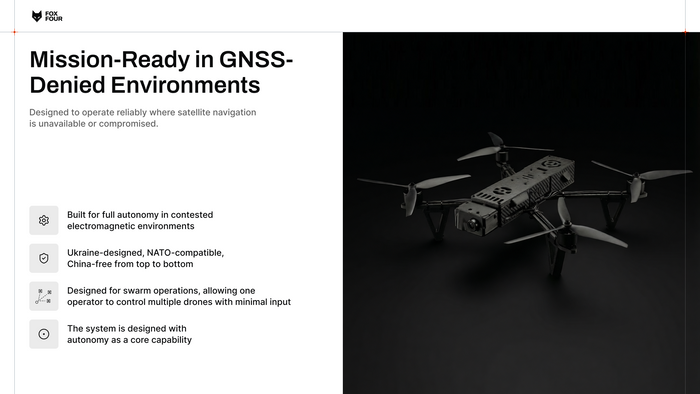

Integrated with the FoxFour VGM-208, Tarzan-10 gains autonomous visual navigation and guidance capabilities for operations in GNSS-denied environments.

Key specifications

• Payload: up to 3 kg

• Flight time: up to 30 minutes

• Flight time with 2 kg payload: 21 minutes*

• Flight time with 3 kg payload: 13 minutes*

• Cruise speed: 50-70 km/h

• Terminal speed: 60 km/h

• Dimensions: 374 × 309 × 50 mm

• Weight: 1.1 kg

• Frame: 10"

• Flight controller: H743

• Motors: 900 KV

• Propellers: 1050-3

• Recommended battery: 6S3P Li-ion, 12,000 mAh

• Operating temperature: -10°C to +50°C

*Flight time is subject to weather conditions.

Designed from battlefield experience. Built for versatility. Enhanced by autonomous GNSS-denied navigation.
