uEye Live - Video streaming and recording by industrial cameras

Industrial monitoring cameras with state-of-the-art SoC (System on Chip) components from our technology partner Ambarella enabling monitoring tasks to be executed directly on the camera without the need for an additional PC.

Highlights:

• Embedded system with SoC technology: The use of modern edge technology with an efficient SoC from Ambarella allows the camera to directly edit, process, filter or evaluate image data. Instead of sending single raw images, the camera transmits up to three parallel video streams, either compressed via RTSP protocol and H264 or via HTTP in MJPEG format directly to various end devices. A PC is not required for camera operation. The camera therefore fulfills various requirements, such as live monitoring, detailed post-analysis and integration into different systems.
• Event Recording: The camera enables decentralised recording of video sequences in the internal persistent memory, triggered by a software command or a trigger line. Depending on the configuration, the seconds before, during and after an event are captured. This function allows complete documentation of machine malfunctions or failures. As a result, potential process errors can be analysed and possible reasons identified.
• Perfect image quality: The integrated ISP (Image Signal Processor) ensures optimum image quality at all times thanks to a variety of image enhancement algorithms, such as auto exposure and auto white balance, HDR and defect pixel correction. These algorithms automatically adapt the video content to different environmental conditions and optimise it specifically for the visual observation by human eyes.
• Plug'n Stream: Once connected to the power supply, the camera is immediately ready for use. Streaming, recording and video settings can be easily configured via a web frontend in the browser without the need for special software or complex programming. For seamless integration into existing systems, the web service offers a REST API that can be used to integrate the control and configuration of the camera into application programs or machine control systems.

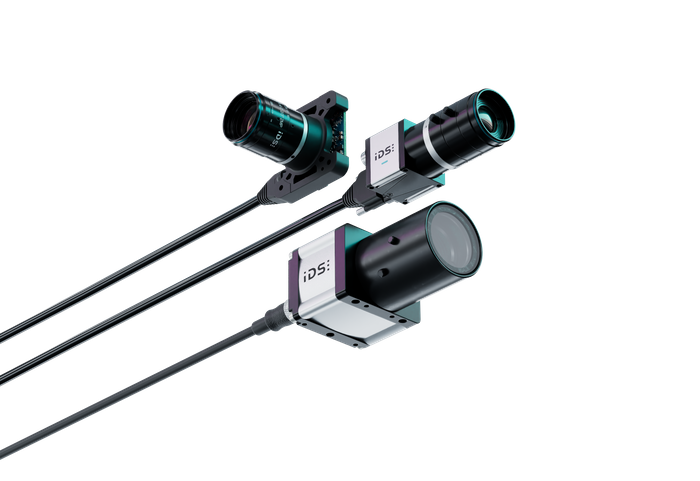

Different models available:

uEye SCP

At 29 x 29 x 29 mm, the uEye SCP is extremely compact and fits into any process situation. A C-mount adapter enables the use of common lenses. Both the hirose plug, for IO cables and power supply, and the RJ-45 network connection can be locked and are therefore ideally suited to the mechanical challenges of industrial applications.​

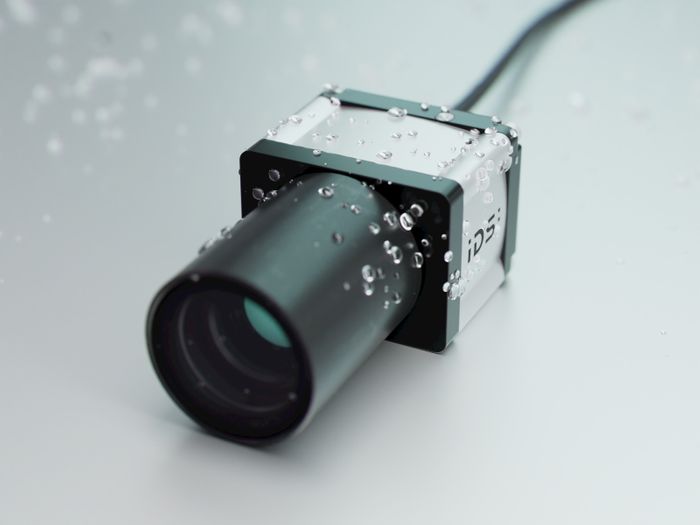

uEye SFA

The dusttight and high-pressure water-resistant housing, featuring a screw-mounted lens tube, achieves IP69K protection rating. Screw-type connectors secure and seal the cable connection even under vibration. With Power over Ethernet (PoE), data transmission and power supply are provided via a single cable up to 100 metres in length.

uEye SLE

Developed as a single-board camera with dimensions of 45 x 45 mm as a design-to-cost concept, the uEye SLE is ideal for machine and device manufacturers to realise competitive projects with high quantities. The camera is available with a C or S-mount lens holder, which additionally protects the circuit board all around and provides additional mounting points, or completely without a lens holder if your own optics are used.
