VGM-208
)
)
VGM-208 | Visual Guidance Module

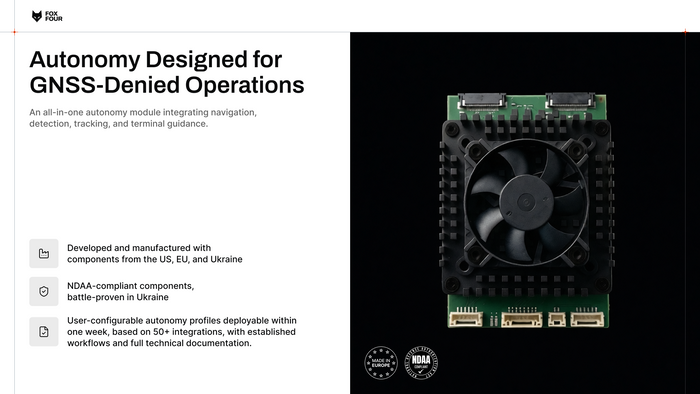

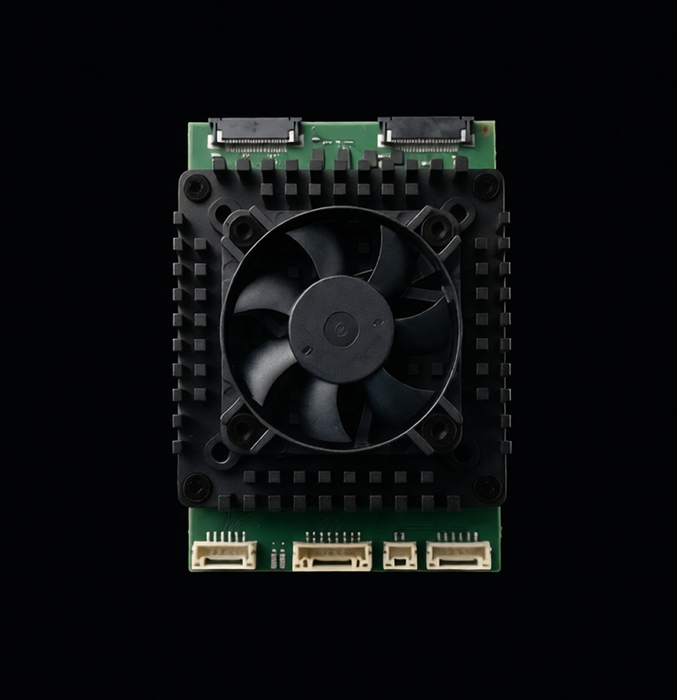

VGM-208 is a compact, lightweight navigation and guidance system designed for UAV operations in GNSS-denied environments. It combines visual-inertial navigation, satellite imagery matching, AI-based target detection and tracking, and autonomous terminal guidance in a 250 g module.
The system provides continuous visual positioning with a position error of <2%, enabling UAVs to navigate without relying on GNSS. Its detection and tracking capabilities support both stationary and moving targets, including pursuit and follow functions.
Key specifications
-
Dimensions: 85 × 53 × 22 mm
-
Weight: 250 g
-
Position error: <2%
-
Navigation altitude: 0-250 m
-
Maximum speed: 35 m/s (130 km/h)
-
Target detection: up to 250 m for vehicle-sized targets
-
Large target detection: up to 450 m for targets >30 m2
-
Pursuit: target tracking and follow supported
-
Operating conditions: daylight, snow and moderate fog
-
Terrain: ineffective over water
-
Camera requirement: 1080p+; vehicle target size ≥ sedan
-
Navigation: visual-inertial navigation with satellite imagery matching
-
Terminal guidance: autonomous visual guidance to the target
VGM-208 is designed for rapid integration into UAV platforms and provides an additional layer of autonomous navigation and precision guidance for missions where GNSS is unavailable, degraded or denied.
*Detection range depends on camera performance, target size and environmental conditions.
